      63mm PPR Welding Machine

      3,540 4,602 23% off

      Brief Introduction

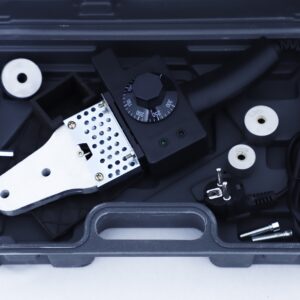

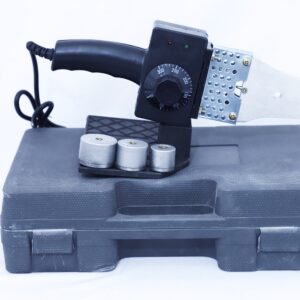

      These series of plastic pipe socket fusion tools are new types of hand-held electronic & thermostatical tools for heating and joining plastic pipes & fittings including PPR,PB and HDPE with aluminum sockets and spigots.
      The tools are composed of quality electric heating plate,electric controller,comfortable nylon plastic handle shell. The temperature range can set as demand of different plastic pipes & fittings, required fusing temperature can fix through adjusting miniature controller knob, environment temperature will be adjusted and updated automatically.


      Technical Specifications :

      Model
      CN-021
      Welding range (mm)
      20-25-32-40-50-63
      Weldable material
      PPR PE PB
      Power supply
      220V, 1Ph
      Frequency
      50~60 Hz
      Total power
      1Kw
      Working temperature
      0~300℃
      Temperature Deviation
      ±5ºC
      Warning temperature
      290℃
      Ambient temperature
      -5~+45℃
      Package data
      39X9X20cm(1/Metal box-2kgs)

      Inquiry
      Add To Wishlist Compare
      Deliver to
      Check

      Application and Feature

      *Suitable for socket welding pipes and fitting made of PE or PP,PB
      *Preprogrammed welding parameter enables to choose the heating time by inputting out diameter of pipe to be welded.
      *Socket fusion is the oldest and most economical method of fusing.
      *Socket fusion is used for gas, plumbing, water, waste water, industrial piping, mining and oil patch applications.
      *The structure design complies with DVS2208
      *Polishing thick heating board and special thick teflon coating moulds
      *Automatic temperature controller
      *Special hard holder
      *0.4mm iron box


      Method of use

      *Use scissors to cut the required length of pipe
      *Push the pipe and fitting into the welding socket horizontal
      *Push the heated pipe & fitting exactly and suitable adjustment should be finished in 5 seconds

      Weight 2.1 kg
      Dimensions 122 × 145 × 321 cm
